Climafol SA2
Reliable Protection for Roof Structures
Innopan ClimaFol SA2 is a vapor-permeable yet waterproof membrane that provides dependable protection for roof structures against rain and snow. It supports roof ventilation, reserves thermal insulation, and is suitable for use under a wide variety of roof coverings.
Basic Data
- Width of the roll (m) 1,5
- Length of the roll (m) 50
- Effective coverage area per roll (m²) 75
- Mass per unit area (g/m²) 150
- Water vapor transmission (Sd) (m) 0,03
- Watertightness W1
- Recommended Applications high roof
Detailed Data
- Tear resistance in longitudinal direction (N) 165
- Tear resistance in transverse direction (N) 225
- Tensile strength in longitudinal direction (N/50mm) 265
- Tensile strength in transverse direction (N/50mm) 180
- Elongation in longitudinal direction (%) 95
- Elongation in transverse direction (%) 110
- Euroclass fire rating F
- Flexible at low temperature (°C) -40
Versatile Protection for Pitched Roofs – with Innopan ClimaFol SA2

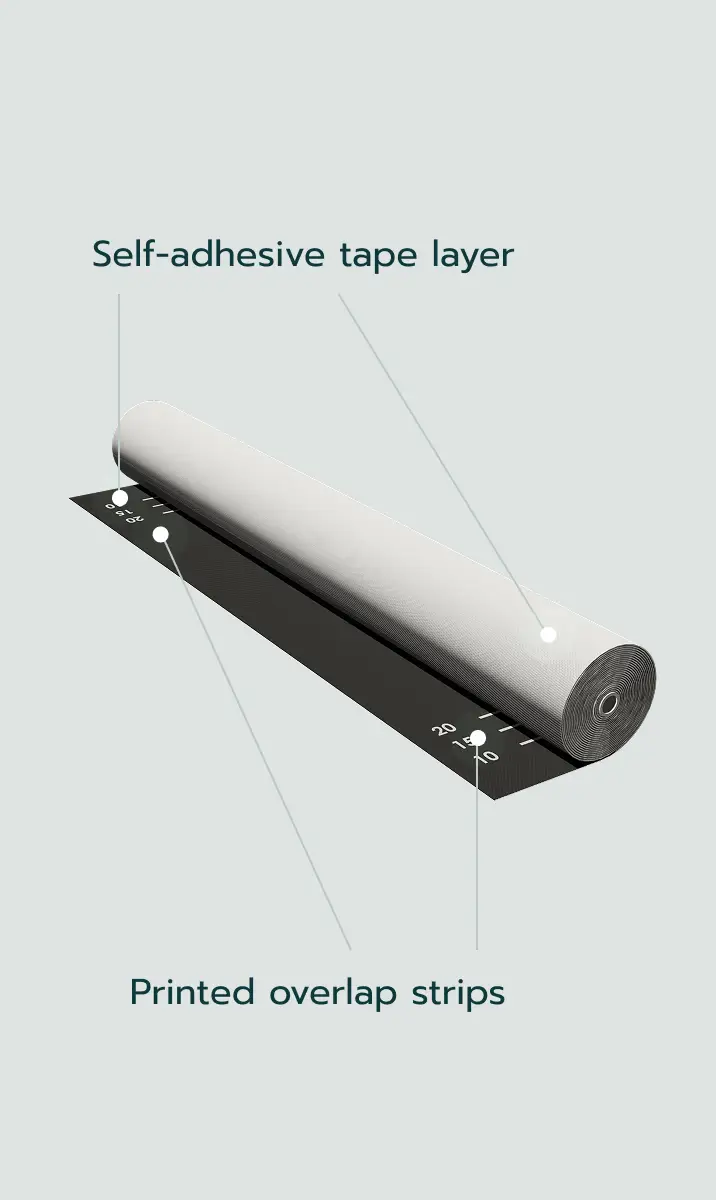

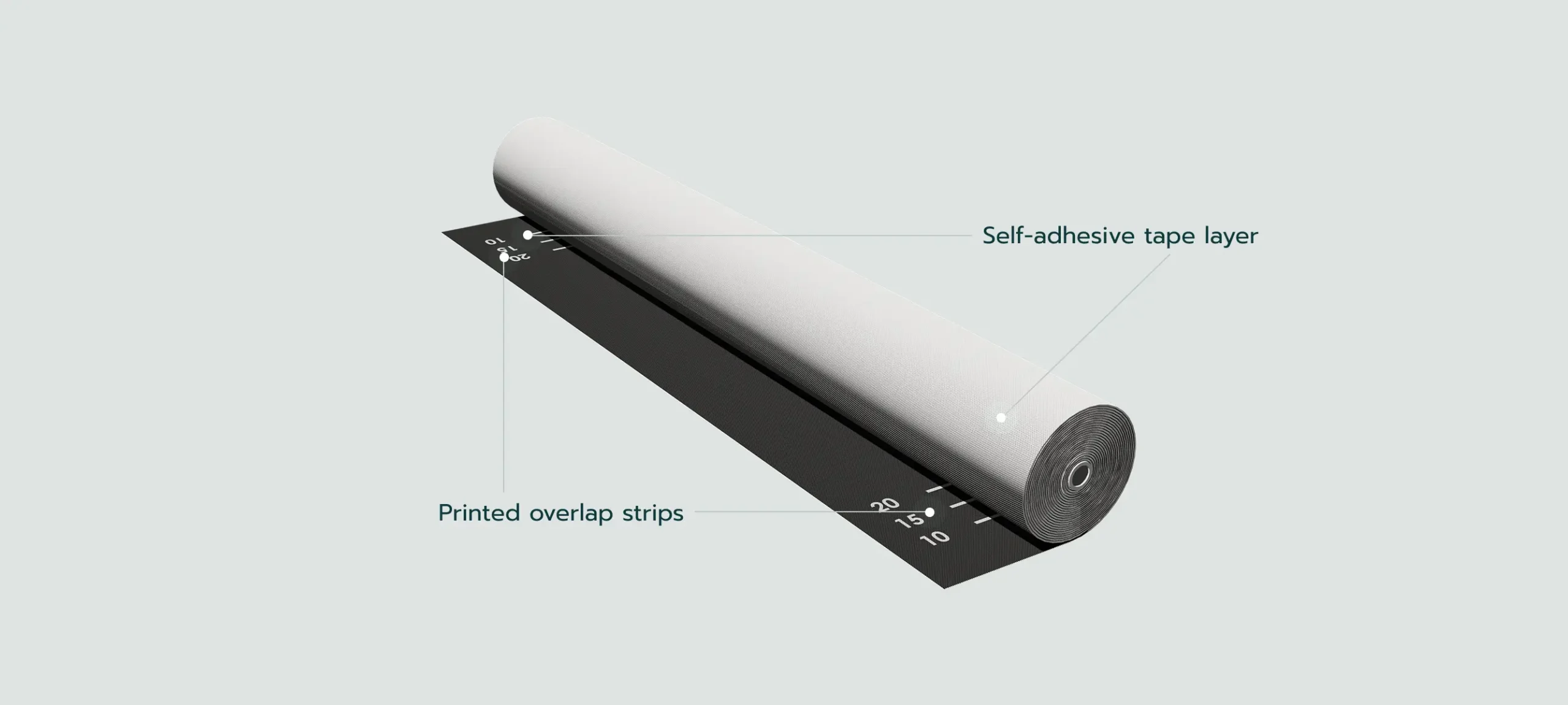

Thanks to its outstanding technical properties, Innopan ClimaFol SA2 is an ideal solution for both ventilated and unventilated pitched roof systems. It can be installed beneath ceramic and concrete tiles, metal roofing, or even shingles, offering long-lasting structural protection. Its excellent windproofing performance also makes it suitable for use in external cladding of timber frame wall structures. Installation is made easy and secure with its double-sided self-adhesive strips, ensuring quick and precise overlaps. Its UV resistance allows for short-term temporary exposure, though for optimal long-term performance, timely integration into the insulation system is recommended. ClimaFol SA2 is a reliable, durable solution that supports the creation of energy-efficient and safe modern roof structures.
